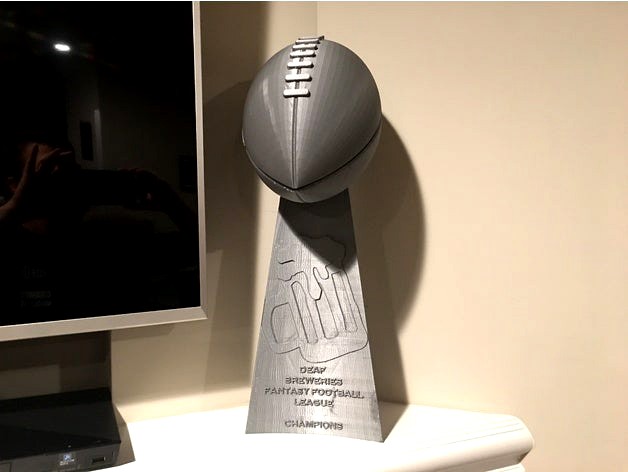

I designed and built this trophy for the fantasy football leagues. This trophy has 4 secret magnetic mechanisms.
In order to open the top lid of football on top;
unlock the "stand door" to open by using “access key”
pull the “bodkey” out of the “bodykey” and turn the “bodkey” 180 degree then put it back in to unlock the “bodykey”
once the “bodykey” unlocks, rotate the “bodykey” 180 degree to unlock the “latch key” and pull it out
use the “the bodkey” to unlock the top lid to open
There are two different hinges in the trophy:
Hinge in the football; I used 1/8” metal rod x 2” long.
Hinge in the “stand door”; Each hinge uses 2 opposing 1/8” x ¼” magnets.
There are 4 latch mechanism; it comprised of a 1/8” x ¼” magnet stacked on a 3/16” x 1/32” magnet. This stacked magents goes in the large opening in the latch. Another 1/8” x ¼” magnet goes behind the stacked magents so that when installed it opposes to each other.
The bodkey, access key and crankshaft key use 3/8” x 1/8” magnet.
In order to open the top lid of football on top;
unlock the "stand door" to open by using “access key”
pull the “bodkey” out of the “bodykey” and turn the “bodkey” 180 degree then put it back in to unlock the “bodykey”
once the “bodykey” unlocks, rotate the “bodykey” 180 degree to unlock the “latch key” and pull it out
use the “the bodkey” to unlock the top lid to open
There are two different hinges in the trophy:
Hinge in the football; I used 1/8” metal rod x 2” long.
Hinge in the “stand door”; Each hinge uses 2 opposing 1/8” x ¼” magnets.
There are 4 latch mechanism; it comprised of a 1/8” x ¼” magnet stacked on a 3/16” x 1/32” magnet. This stacked magents goes in the large opening in the latch. Another 1/8” x ¼” magnet goes behind the stacked magents so that when installed it opposes to each other.
The bodkey, access key and crankshaft key use 3/8” x 1/8” magnet.
