Edit: 21.04
Uploaded improved version.
I didnt notice that the previous one was slightly intersecting with the bottom of the hotend cooler but thought thats just my microswiss not fitting properly.
The new version now fits the stock and microswiss hotend coolers and has several smaller adjustments and improvements.
Be aware this model serves as a mount for the Horn fan duct. But it can be easily modified for other fan ducts if you have even the basic Fusion 360 skills. The f3d file is also the updated version.

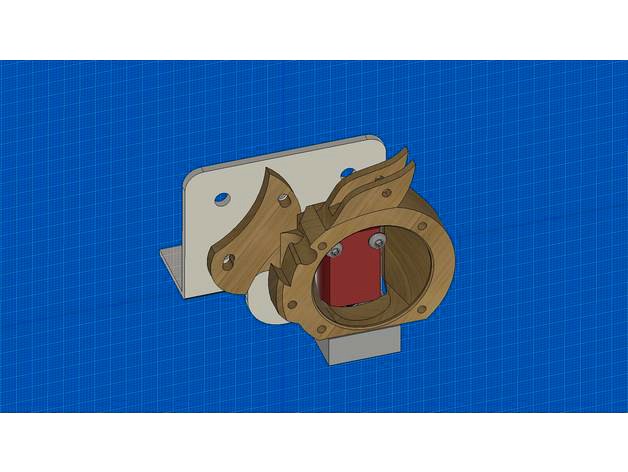

The idea was to make a fan shroud that is mounted on the x plate itself, and to use it as a mount for a fan duct. That removes the need to use the hotend screws completely, which just needlessly complicates things.
Ive used @spider65 dualfang files to remix this, as he was gracious enough to share his Fusion 3d files with hotend and carriage models included.
Ive printed mine in PLA which is good enough.
