Extreme overhang test 50*6mm 85-70degrees
by Thingiverse
Last crawled date: 5 years, 10 months ago
50x6mm overhang test. It can nicely show the warping on long distances too (OHWT- OverHang Warp Test). Test were done on my duct: Airodactylus V3 which is haven't released yet. Used cura profile will be uploaded later, but the most important are layer height and walls count -you cant take turns in mid air.
Two versions: with pads for more bed adhesion, or without.

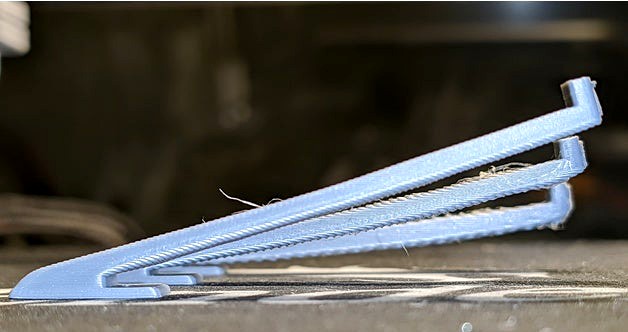

Used settings on reference pictures above:
philaments: Sunlu PLA+ Silver
layer height: 0.16
init temp.: 220/70
temp.: 215/65
walls: 6
speed:54/27
fan: 100% at layer 3
-I didnt print the 70deg, as its too easy for my setup :P
Support me: https://paypal.me/enzaksz
Two versions: with pads for more bed adhesion, or without.
Used settings on reference pictures above:
philaments: Sunlu PLA+ Silver
layer height: 0.16
init temp.: 220/70
temp.: 215/65
walls: 6
speed:54/27
fan: 100% at layer 3
-I didnt print the 70deg, as its too easy for my setup :P
