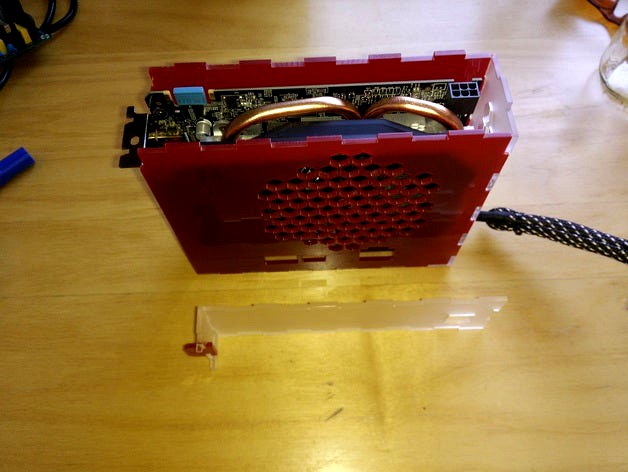

EXP GDC v8.0 (mini ITX) case by exco
by Thingiverse
Last crawled date: 4 years, 7 months ago
I needed an enclosure for my external graphics card I'm sometimes using with my Dell E6430.
The case fits a GTX 960 mini nicely and will possibly fit other ITX graphics cards and can be easily adapted for bigger cards.
The notched box was created using boxmaker (online tool).
It then went through pdf -> dxf (online converter).
I edited the needed connector cutouts and air holes and lasercut it from 3mm acrylic.
The EXP GDC v8.0 can be cheaply found on Banggood for Mini PCI-E, Expresscard, MAC as well as NGFF. (Matching 6-pin power cable).
You can either use an old ATX PSU you have lying around - or the Dell PA-2 if you need a plug and play solution.
The case fits a GTX 960 mini nicely and will possibly fit other ITX graphics cards and can be easily adapted for bigger cards.
The notched box was created using boxmaker (online tool).
It then went through pdf -> dxf (online converter).
I edited the needed connector cutouts and air holes and lasercut it from 3mm acrylic.
The EXP GDC v8.0 can be cheaply found on Banggood for Mini PCI-E, Expresscard, MAC as well as NGFF. (Matching 6-pin power cable).
You can either use an old ATX PSU you have lying around - or the Dell PA-2 if you need a plug and play solution.
