Description
This is a variation of this project: http://www.thingiverse.com/thing:968644
If u need some other different height of push button u can download from this project: http://www.thingiverse.com/thing:967327

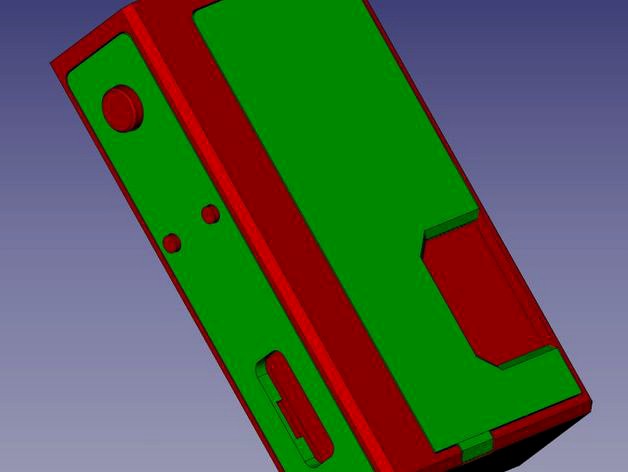

External size are: 92x50x24 mm.
This box mod can mount:
Evolv DNA40 (NOT the DNA25)
japanese square bottle or classic round 6 ml bottle.
If u want print the japanese bottle version u need to merge:
the body with hole u need;
lateral_fit_square_bottle.stl;
rear_fit_square_bottle.
If u want print the rount 6 ml bottle versione u need to merge:
the body with hole u need;
rear_fit_round_bottle.stl.
The box mod can mount a 18650 battery.
To finish the work u need:
a drip cap (there are 3 hole body version);
a spring for negative contact;
a positive contact;
magnets 3x2 and 3x1
wire.
Good Luck !
