ESP8266 Weatherstation Housing by karofant
by Thingiverse
Last crawled date: 4 years, 10 months ago

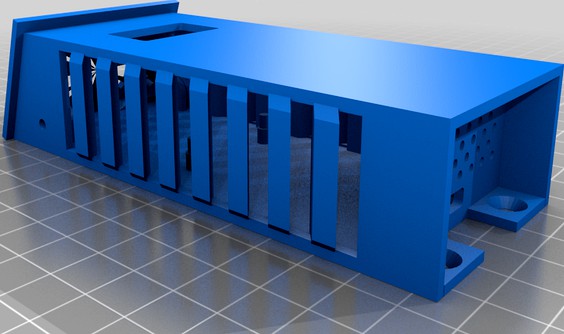

Enclosure for ESP8266 based Weatherstation with 0,96" OLED Display, DHT11 Temperature&Humidity, BMP180 Atmospheric Pressure and BH1750FVI Light Sensor
Credits to https://blog.squix.org/ for the initial ESP8266 weatherstation idea.
REMARK: Don't print the assembly model. It's just there to show how it looks assembled.
REMARK: Should be clear, but to make it clear only use V1.0 OR V2.0 files not both.
V1.0: WIP: not beautiful but functional
first print fits satisfying, some edges need little sanding because of too tight fit
no inner installation yet but it should fit regarding my measurements
pictures with inner installation will follow once installed
V2.0: WIP: sharp edges instead of beveled
latches rounded and order reverted (housing, roof, rearplate)
M3 threads in inner latches
cooling fins realigned and bevelled for easier printing
mounting pins in case flat BH1750FVI PCB is used instead of hemispherical shaped
maybe you should also add some sort of plastic window in this case
I'm planning to use some hot glue to fix the PCBs on the pins - any other suggestions?
overall fitting improved
pictures from V1 to show inner layout added
yep I know, weatherstations must be white to prevent heat absorption
but I ran out of white PLA
Pictures with inner installation will follow once installed.
