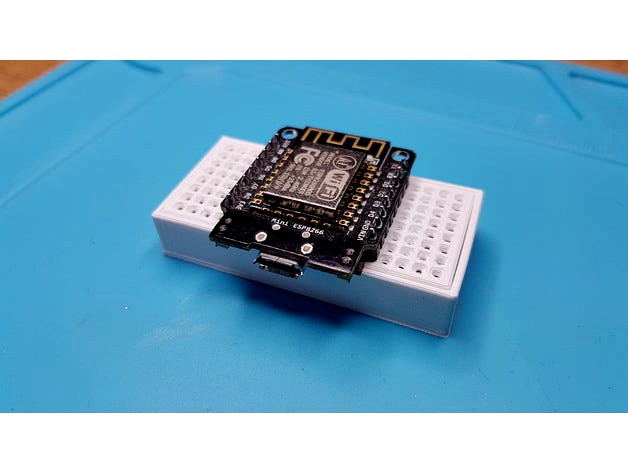

ESP8266 dev board breadboard by warwound
by Thingiverse
Last crawled date: 4 years, 8 months ago
This is an 80 tie point breadboard with an 8 tie point space between left and right banks of tie points.
Designed for use with development boards such as:
Geekcreit Mini
WeMos D1 Mini V2
These boards have 2 rows of 8 pins separated by an 8 tie point space.
Plug your development board into the breadboard and each development board pin is broken out to 4 pins.
UPDATED 7th May 201816 pin dev board extended enclosure.stl uploaded.
This extended enclosure has space for an additional 2 breadboard parts separated by a standard 2 tie point space.
Designed for use with development boards such as:
Geekcreit Mini
WeMos D1 Mini V2
These boards have 2 rows of 8 pins separated by an 8 tie point space.
Plug your development board into the breadboard and each development board pin is broken out to 4 pins.
UPDATED 7th May 201816 pin dev board extended enclosure.stl uploaded.
This extended enclosure has space for an additional 2 breadboard parts separated by a standard 2 tie point space.
