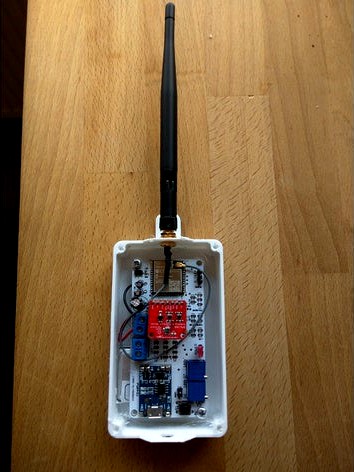

ESP-WROOM-32 Weatherstation case by MeisterQ
by Thingiverse
Last crawled date: 4 years, 8 months ago
I made a case for my ESP32 Weatherstations.
I created a PCB with Eagle, soldert all parts, wrote the Code and designed this case.
So i printed it out with PETG.
All of the ESPs data is send to thingspeak.
https://thingspeak.com/channels/388412
The PCB is powerd by an 1000mAh 3.7V LiPo. A TP4056 with Protection is charging up this LiPo.
A 6V 4.5W Solarpanel produces the needed power to charge the battery.
If you have more questions, just ask.
Gerberfiles are available if you ask.
PCBs are orderd at JLCPCB.
