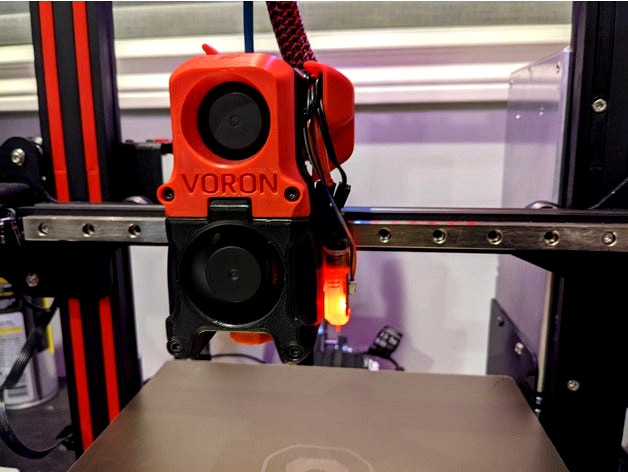

Ender 3 Voron Afterburner Linear Rail Carriage by RepresentativeBlink

Last crawled date: 4 years, 11 months ago

Remixed another remix for more clearance of the linear rail. I felt the two part design was easier to print and assemble. Included the EZABL and BLTouch mounts from the original design and the remix.
Parts Used:300mm Linear RailM3 T Slot Nut or Misumi HNTAJ5-3 (I had these leftover from the Voron build)Various M3 Socket Head Screws and NutsHeatset Inserts
Hopefully fairly self explanatory on how it all goes together.
