Ender 3 Pro Raspberry Pi case incl. stepdown and relais
by Thingiverse
Last crawled date: 5 years, 9 months ago
Case for Ender 3 Pro to mount on the back of the Ender 3 stand.

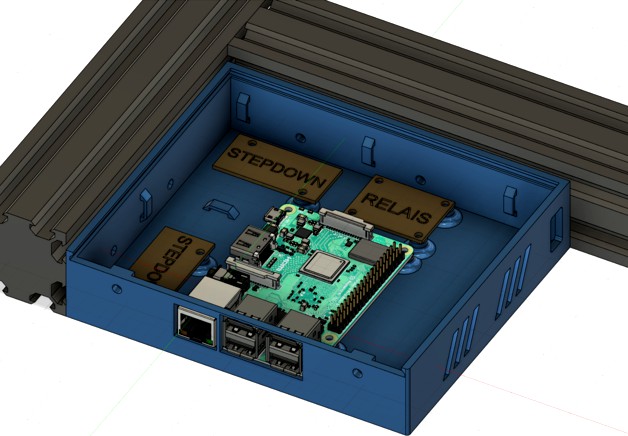

It holds 1 Raspberry Pi 3, 2 Stepdown converter and 1 relais + some extra space for cables on the right.
You will need some short M3 screws to hold the parts on the stands i designed. Just screw them in the plastic. It works.
Additionaly you need 2x M4 nut + Screw to hold the cover in place.
Some M3 screws to mount the case to the V-Slot Rails with some of these here -> https://www.thingiverse.com/thing:3050607
Stepdowns i used are "LM2596 DC-DC"
Relais i used is "5V KY-019"
Just google those and you find one. If any questions please comment i try to answer all.
The usecase for me is that i can turn on my Printer with the Octoprint + Relais. With the printer the LEDs i mounted turn on as well.
1 Stepdown 24V->5V for Pi
1 Stepdown 24V->12V for LEDs
1 Relais to switch on Printer + LED Stepdown
More text coming if i see any need.
