Enclosure for a DIY resistor decade with thumb encoders by nachbelichtet
by Thingiverse
Last crawled date: 4 years, 7 months ago

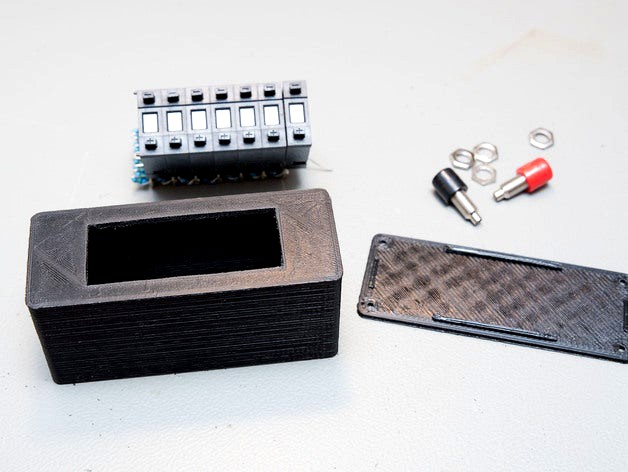

This is a simple enclosure for a 7 digit resistor decade with thumb encoders. You can find more information about the concept and the schematics on the EEV blog http://www.eevblog.com/forum/projects/diy-cheap-resistor-decade-substitution-box/
It's really great and helpful both for development or education, especially when you're designing opamp designs, filters or audio amps. You can adjust any resistance value from 0 up to 9,999 MOhms. The tolerance depends on the quality of the resistors, but 1% types should do fine for most applications.
The enclosure itself consists of two parts. You just need four M2.5x10 mm screws (or an equivalent inch-size) for the cover and two 4mm banana jacks.
It's really great and helpful both for development or education, especially when you're designing opamp designs, filters or audio amps. You can adjust any resistance value from 0 up to 9,999 MOhms. The tolerance depends on the quality of the resistors, but 1% types should do fine for most applications.
The enclosure itself consists of two parts. You just need four M2.5x10 mm screws (or an equivalent inch-size) for the cover and two 4mm banana jacks.
