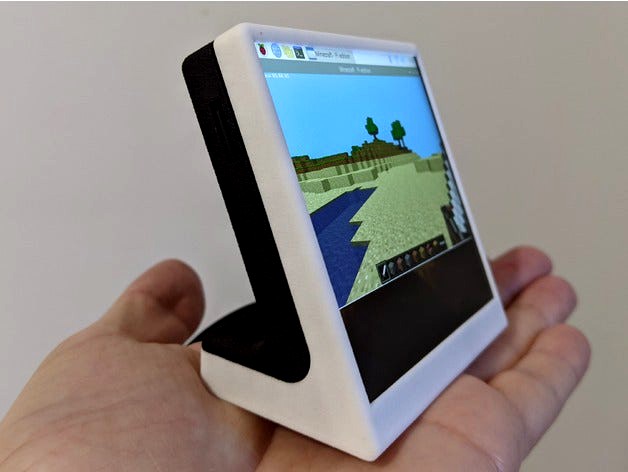

Enclosure base for HyperPixel 4.0 Square Non-Touch and raspberry pi zero by printminion

Last crawled date: 4 years, 5 months ago

Support me:
One color Enclosure for pimoroni HyperPixel 4.0 Square Non-Touch* (720x720 pixels (~254 PPI)) and raspberry pi zero.
it will not fit with HyperPixel 4.0 Square Touch
Cover may find here https://cults3d.com/en/3d-model/gadget/enclosure-base-for-hyperpixel-4-0-square-non-touch-and-raspberry-pi-zero
You can order it on shapeways (without logo):
Enclosure and Cover in same color
Enclosure base
Enclosure Cover
Check out videos:
Assembly https://youtu.be/kvvdSguD19g
Disassembly https://youtu.be/set75_ZADRM
You will need a small peace of foam in order to keep display in place.
I used the tesa powerbond (remove protective film only from one side).
WARNING: WHEN INSTALLING HYPERPIXEL 4.0 SQUARE ONTO YOUR PI MAKE SURE NOT TO PRESS DOWN ON THE SCREEN SURFACE! HOLD THE BOARD BY ITS EDGES AND WIGGLE IT TO MATE WITH THE EXTENDED HEADER (OR GPIO HEADER). ALSO TAKE CARE NOT TO PULL ON THE EDGES OF THE GLASS DISPLAY WHEN REMOVING YOUR HYPERPIXEL.
