Electrophant's split-flap weather display by Electrophants
by Thingiverse
Last crawled date: 4 years, 8 months ago

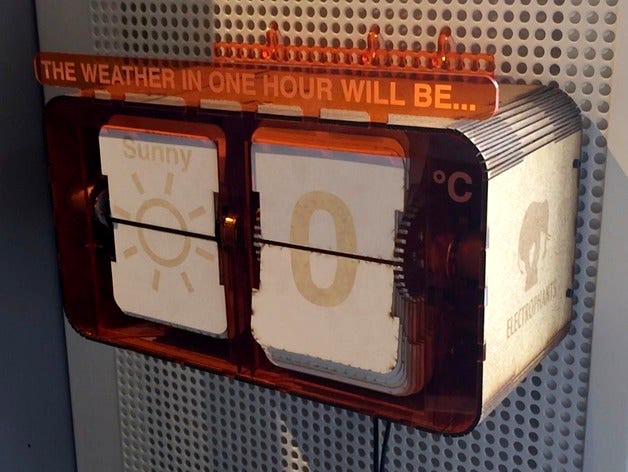

Here is a split-flap weather station we(group 5) made for our 41030 Design of mechatronics course at DTU.
Our design process can be followed on our blog. However, it is written in danish.https://electrophants.wordpress.com/
For our product, we used:
1 Sheet of acrylic of 3mm (600x400 mm)
1 MDF board, also 3mm (600x400 mm)
1 Arduino
2 stepper-motors
2 ball-bearings
esp8366 wifi module
photo interrupter (GP1A51HRJ00F)
Jumper cables
USB power supply
2 sheets of "sign" cardboard (1mm thick, 600x400)
Feel free to ask questions, or comment. All is welcomed :-)
https://youtu.be/FW1SGsN5mlshttps://youtu.be/7X0FE_OM5CU
