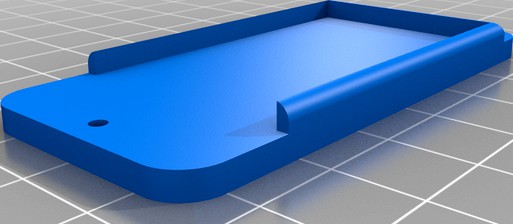

Electro glider servo tray with mezzanine for the receiver

Last crawled date: 5 years, 9 months ago

2 new servo+receiver trays for MKS HV6100 and HV6125e and REX7 to be used in the Electro Quantum, but can be also used in other electro planes if the fuselage allows it. The idea is the following: The wood plate is glued in the fuselage and provide the receiving plate to mount / remove the servo tray with 2 x 3mm screws from outside the fuselage. Screw nuts are inserted at each end of the servo tray.
Servos are mounted horizontally, and a second upper plate hosts the receiver. This servos tray is located behind the canopy and in front of the wing joiner in the E-Quantum.
