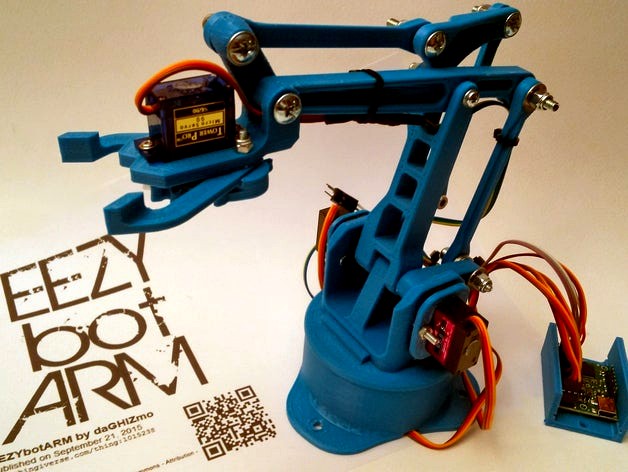

This is a 3D printed robotic arm
The intent was to design something "easy" and cheap to built with a good visual impact also.
Test video: https://youtu.be/qovZKW0DxWkhttps://youtu.be/N55W8TdMfCo
I spent time to look around the web at some examples available that could be a good starting from, and between all I found interesting the phenoptix MeArm V4 project (http://www.thingiverse.com/thing:360108) especially for the simplicity and low cost of parts involved.
So I kept only the kinematics geometry and redesign all parts including the gripper
23/09/15
updated instruction and round ramp stl (R01), added ball stl
preliminary tests videohttps://www.youtube.com/watch?v=x9C_3WHr1G0https://www.youtube.com/watch?v=0OFL6MxbPIM
25/09/15
updated gripper r01 files
04/10/15
added instructables link in instruction
