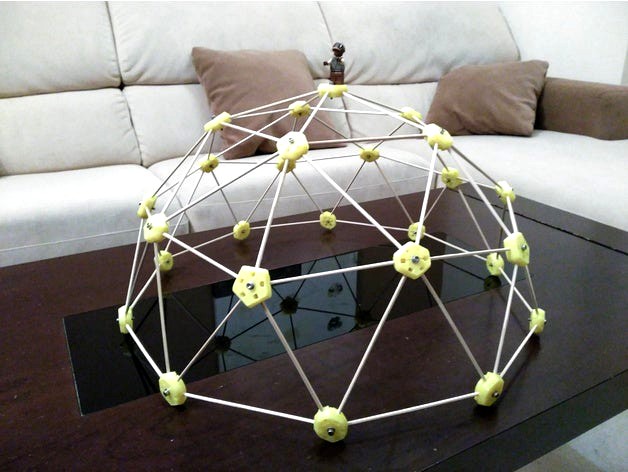

500 mm diameter Geodesic Dome
Desing considerations
The pieces are designed for a 3 mm diameter bar. It has a M3 screw to tight the upside and downside piece of each node.
The distance between the theorical vertex and the end of the bar is 7 mm, this distance is called Lhole in the fantastic dome calculator by SimplyDifferently.org
https://simplydifferently.org/Geodesic_Dome_Notes?page=3#2V/L2
In fact, you can change the diameter of the dome varying the long of the bars, feel free to play with this calculator.
If you need different bar diameter, you can scale the piece for a factor, you have to keep in mind that the diameter of the screw and the Lhole will be affected for the same factor.
Bill of materials:
20 pieces Hexagonal node
6 pieces Pentagonal node
Cut wood bars, I made from skewers
30 bars 123 mm
35 bars 141 mm
Screws
26 bolt M3x16 DIN912, nuts and washers.
How to assemble
1 - Assemble all the pentagonal nodes with all the shorter bars
2 - Join the 5-point stars with hexagonal nodes. The hexagonal nodes has a notch pointing to shorter bars.
3 - Now we can take longer bars and assemby with hexagonal nodes
See attached photos and floor plan.
Thanks
Based on the work of Effalohttp://www.thingiverse.com/thing:3215
But more specifically in the great labor of divulgation of Obijuan (In spanish)https://github.com/TecnoLab/domocraft/wiki
