E3D-v6 with Aus3D IR Z Probe Carriage by ant0ny
by Thingiverse
Last crawled date: 4 years, 11 months ago
E3D-v6 with Aus3D IR Z Probe Carriage
This is matched to X Carriage from the Smooth X-axis for Prusa i3 with Leadscrews by MazaaFIN
The hole pitch is 23mm x 23mm and 4.2mm Diam hole.
Parts Needed:
4x M4 x 15mm plus nuts
2x M4 x 25mm plus nuts
2x M3 x 22mm plus nuts
2x M3 x 10mm plus nuts
I have added the spacers for the Aus3D IR Z Probe. This is to get the Capacitor away from the Hotend

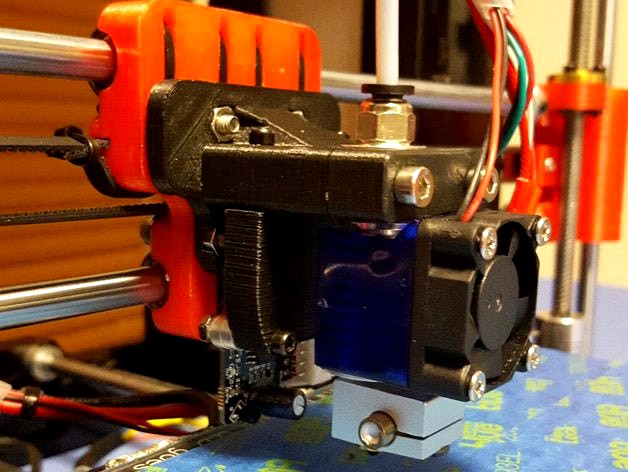

*Note: Picture is showing my proto type IR Z probe holder I'll update this soon.
This is matched to X Carriage from the Smooth X-axis for Prusa i3 with Leadscrews by MazaaFIN
The hole pitch is 23mm x 23mm and 4.2mm Diam hole.
Parts Needed:
4x M4 x 15mm plus nuts
2x M4 x 25mm plus nuts
2x M3 x 22mm plus nuts
2x M3 x 10mm plus nuts
I have added the spacers for the Aus3D IR Z Probe. This is to get the Capacitor away from the Hotend
*Note: Picture is showing my proto type IR Z probe holder I'll update this soon.
