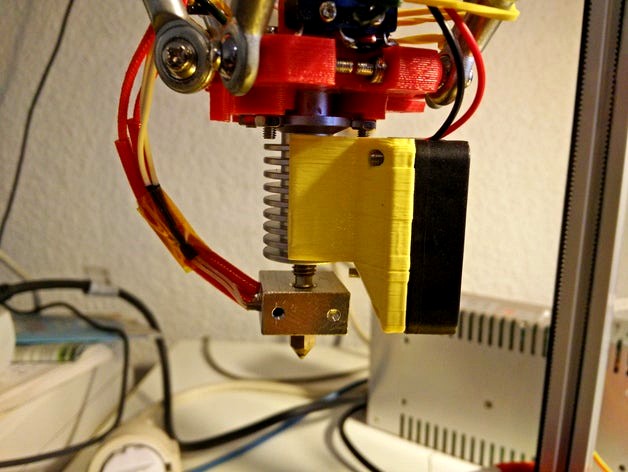

E3D V6 40mm fan adapter for chinese clone with 19.7x25.5mm cooler by cun83
by Thingiverse
Last crawled date: 4 years, 7 months ago
Remix of the awesome customizable from vtoryh.
Fits a 40mm fan under a Kossel Mini effector.
Sized for my chinese E3D clone with a cooler of 19.7mm diameter and 25.5mm height.
Enjoy! :)
EDIT: Added 2 new STLs (and SCAD) with the attachment lip on the top, where they should be. Oops.
Remarks:
My hotend came with a Sintron Kossel Mini kit, but I know they use different variants in their store, so it'd better to measure.
You should use the "e3d_fan_clone_19.7x_25.5mm_40mm_fan.stl" file if your printer is somewhat accurate.
The "e3d_fan_clone_19.7plus2x_25.5mm_40mm_fan.stl" file has a diameter of 19.9mm to offset bad printing tolerances, it's actually to loose if your printer is accurate.
