Duplicator i3 Camera Mount for Z brace by A_Str8
by Thingiverse
Last crawled date: 4 years, 7 months ago

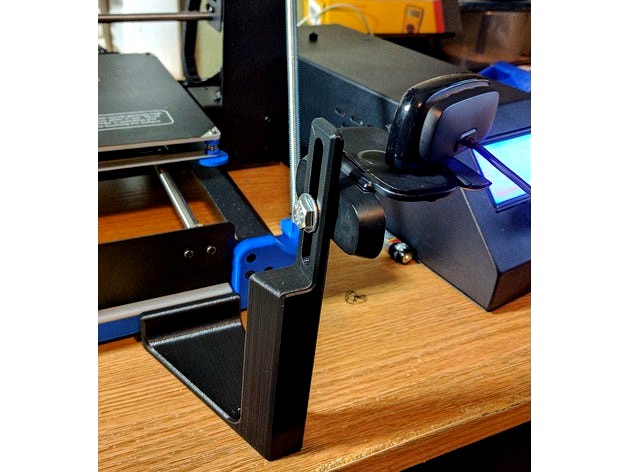

A simple camera mount for a Wanhao Duplicator i3 that has the Z brace mod installed. HillbillyZT's mount wouldn't work with the Z brace mod, so I designed my own.
This is compatible with any camera that has a standard 1/4" tripod mount, but I specifically designed it to work with my Logitech C615. When used with the C615 (or any other cameras that have multiple swivel points) this can be used for portrait or landscape orientation. The camera can be placed on the left or right side of the mount
2/18/17 Update
Try webcam_version.stl if your camera does not have a tripod mount but it does have a way to hang or clamp onto a monitor. Webcams should be able to clamp to the top of that version
3/31/17 Update
Webcam Short Version.stl is a shorter webcam version that SoylentGeek requested. It also has more clearance for folks who have Y belt pulley mods installed.
Instructions
This requires a 1/4"x1/2"bolt and a 1/4" washer
The mount slides onto the front Y brace from the Z brace mod.
The spacer is necessary to remove the gap between the mount and the Y brace. The size of the spacer you need will vary depending on the size of the rubber feet you used. For this reason, I included a step file and f3d file for the spacer. The default size is 3.3mm, which worked for me, but you can use press/pull in just about any modelling software to adjust it.
This is compatible with any camera that has a standard 1/4" tripod mount, but I specifically designed it to work with my Logitech C615. When used with the C615 (or any other cameras that have multiple swivel points) this can be used for portrait or landscape orientation. The camera can be placed on the left or right side of the mount
2/18/17 Update
Try webcam_version.stl if your camera does not have a tripod mount but it does have a way to hang or clamp onto a monitor. Webcams should be able to clamp to the top of that version
3/31/17 Update
Webcam Short Version.stl is a shorter webcam version that SoylentGeek requested. It also has more clearance for folks who have Y belt pulley mods installed.
Instructions
This requires a 1/4"x1/2"bolt and a 1/4" washer
The mount slides onto the front Y brace from the Z brace mod.
The spacer is necessary to remove the gap between the mount and the Y brace. The size of the spacer you need will vary depending on the size of the rubber feet you used. For this reason, I included a step file and f3d file for the spacer. The default size is 3.3mm, which worked for me, but you can use press/pull in just about any modelling software to adjust it.
