Dual PSU brackets and wiring cover by ian_in_the_midlands
by Thingiverse
Last crawled date: 4 years, 7 months ago
I am upgrading my Prusa I3 from the standard ATX power supply to use two power supplies: 12V 200W for the Ramps/Extruder and 24V 360W for the heated bed.
I needed a way to secure them both down, and a way to safely contain the wiring.
This is my solution.

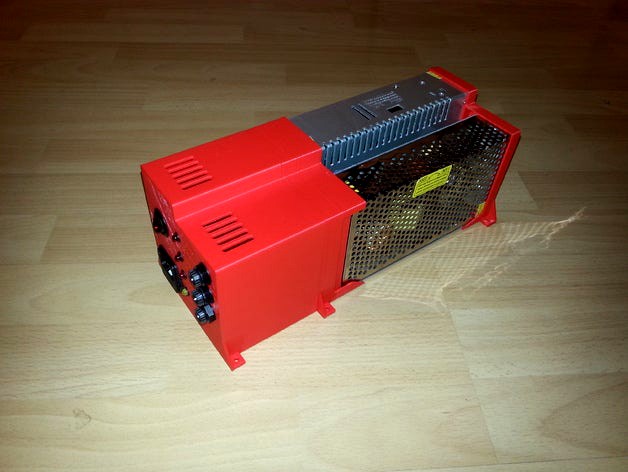

It is made up of 3 parts:
The back clamp with a channel for the cables to exit.
The front clamp that goes over the terminal block side of the power supplies,
The cover that houses the IEC connector, switch, fuses and LED indicators.
When fitted in place the cover encloses all of the wiring, and also blocks access to the screw terminals.
