DroneBot Quadcopter Robot by FlyHighRC
by Thingiverse
Last crawled date: 4 years, 1 month ago

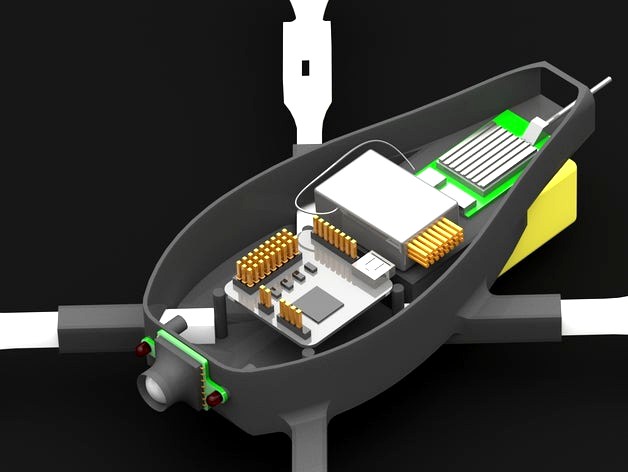

This is DRONEBOT! Its a 3D Printable quadcopter which is so incredibly tiny!
260mm motor shaft centre to motor shaft centre.
If you want a complete RC FPV Drone then this is what you’ll need. Though everything for a complete drone is pretty pricy some things such as the transmitter only need to be purchased once..the transmitter had something called model memory so you could have say 6 different models all with different settings and you just click the model that you programmed and named in a menu for the model that you want to fly. Also these batteries can be used on other models.
Parts list:
X4) Brushless motors http://www.hobbyking.com/hobbyking/store/__5378__C1822_Micro_brushless_Outrunner_2100kv_14g_.html
X4) Speed Controllers http://www.hobbyking.com/hobbyking/store/__18002__HobbyKing_Red_Brick_10A_ESC.html
X4)Propellers http://www.hobbyking.com/hobbyking/store/__22753__5030_Propellers_Black_3xCW_and_3xCCW_6pcs_per_bag.html (you will break props in the learning process so buy as many sets as your budget allows)
X1) Flight Controller http://www.hobbyking.com/hobbyking/store/__22322__MultiWii_NanoWii_ATmega32U4_Micro_Flight_Controller_USB_GYRO_ACC.html
X5)Batteries http://www.hobbyking.com/hobbyking/store/__18847__Turnigy_800mAh_3S_30C_Lipo_Pack.html ( I recommend getting as many batteries as you can, I recommend at least 5 since that means you can fly over and over once the last pack is depleted you can add the next charged one and recharge the other)
X1) Transmitter http://www.hobbyking.com/hobbyking/store/__8992__Turnigy_9X_9Ch_Transmitter_w_Module_8ch_Receiver_Mode_2_v2_Firmware_.html (includes the receiver)
X2) Gold Connectors http://www.hobbyking.com/hobbyking/store/__66__2mm_Gold_Connectors_10_pairs_20pc_.html (very commonly used to connext motors to speed controllers, SOLDERING REQUIRED)
X1) FPV System http://www.hobbyking.com/hobbyking/store/__20672__Fat_Shark_Predator_RTF_FPV_Headset_System_w_Camera_and_5_8G_TX.html (Includes all fpv equipment)
X1)Cloverleaf Antennas http://www.hobbyking.com/hobbyking/store/__27750__5_8GHz_Circular_Polarized_spiroNet_Antenna.html (Highly recommended over the standard antennas that come with the FPV System as they improve range..over a Mile..)
It is Developed as my entry into a Develop3Ds printer competition :)
Thank you
Not For Commercial Usehttp://www.youtube.com/user/FlyHighRC386?feature=mhee
please check out my blog on 3D printing
http://3printerandd.blogspot.co.uk/
