Drafting Triangle (for Engineers!) by wscarlton
by Thingiverse
Last crawled date: 4 years, 7 months ago
Needed this handy tool at the office - prints in under an hour!

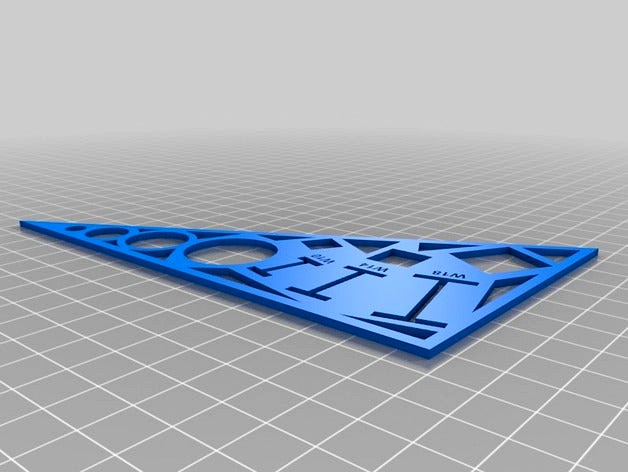

For the structural engineer (or architect), this is a useful 30-60-90 drafting triangle with common wide flange beam sizes (as well as pipe and tube sizes). The beam sizes are labeled too.
Just print and use! (I printed at 200 micron layer height - it's not important).
For the structural engineer (or architect), this is a useful 30-60-90 drafting triangle with common wide flange beam sizes (as well as pipe and tube sizes). The beam sizes are labeled too.
Just print and use! (I printed at 200 micron layer height - it's not important).
