DPH3205 Case by robertguy
by Thingiverse
Last crawled date: 4 years ago

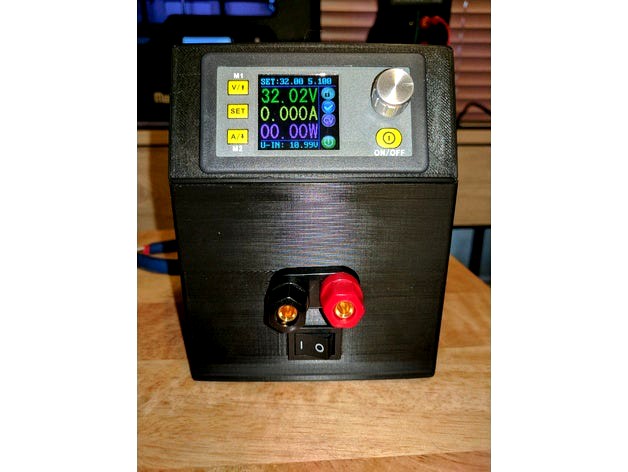

This is a case for a DPH3205 module. I designed it so that you can use two types of inputs, banana jacks or 2.1mm jacks. The toggle switch swaps between the inputs.
Parts List:
DPH3205
Banana Plug Jack
On/Off Switch
Toggle Switch
2.1mm Jack
I got these at Home Depot, but here are some examples for reference.
Ring Terminal for back of Banana Plug Jack
Female Quick Disconnect
two #4-40 x 3/8 in screws and nuts
four screws for the PCB standoffs. I am not sure the exact size, but standard PC screws fit.
Tools:
Hot Glue Gun
Soldering Iron
Wire Cutters/strippers
Crimpers
Screw Drivers
