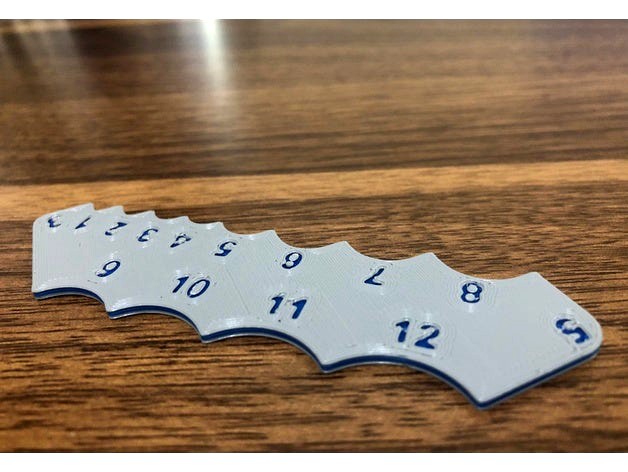

Double-sided Inset Fillet Gauge by acenine
by Thingiverse
Last crawled date: 4 years, 6 months ago
Just a little remix of a nifty fillet/round gauge. I made the numbers inset and also made it so that the numbers can be seen on either side. I did this specifically with the intent of making the middle layers a different color so as to see the numbers better.
The whole piece is 2mm tall and the insets are .6mm on both sides. This was printed at .28mm height which, when sliced in Cura, produced 7 print layers. I used the "pause at height" postscript feature to pause at layer 2 and 5 to make the middle 3 layers a different color.
