Double LCD drawer Ender 3 / Pro by DaVinci2000
by Thingiverse
Last crawled date: 4 years, 11 months ago

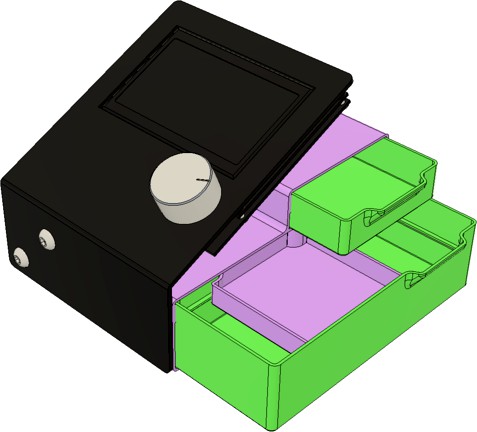

Double drawer with tray/s hidden under LCD panel suitable for Ender 3 and Pro.
Bottom drawer can fit things up to 32.5 mm high and 124.5 long, with optional one or two trays (these are identical). Mount it with four M3x6 bolts and T-nuts.
If you miss T-nuts you can print adapters for M3 nuts:https://www.thingiverse.com/thing:3050607
If you need a regular drawer:https://www.thingiverse.com/thing:3664764
Print settings:
Filament: PETG, PLA
Layer Height: 0.3
Line Width: 0.6 (all parts have walls of 1.2 mm thickness)
Wall Line Count: 1
Top/Bottom Layers: 2
Fill Gaps Between Walls: Nowhere
Flow: 105-110% (a bit more than usual to increase adjacent lines adhesion)
Infill: 0%
Temperature: +5..15 to regular temp due to thick and wide lines
Check out my other designs:https://www.thingiverse.com/DaVinci2000/designs
