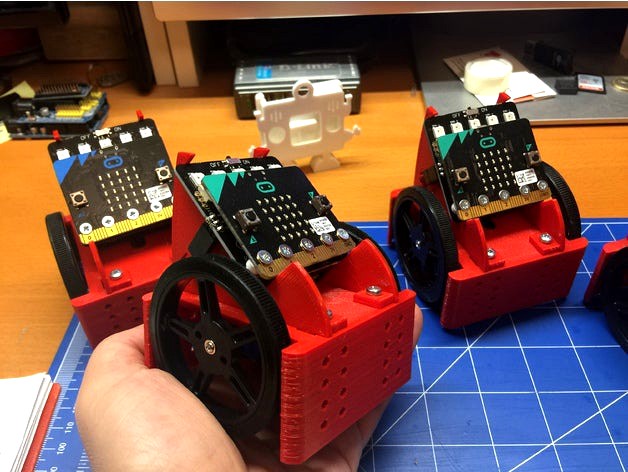

DotBot:bit by Dotbot-io

Last crawled date: 5 years, 2 months ago

DotBot:bit is an open source robot chassis to prototype robot with BBC micro:bit.
This robot has been created to make 3D printing and programming lessons for my students
To create DotBot:bit you need:
n 1 micro:bit,
n. 2 Servo:lite board from Kitronik,
n. 2 FS90R micro continuous rotation servo
n. 2 wheels for FS90R 60mm x 8mm
n. 2 glass marble (16 mm).
Two versions of DotBot: bit

DotBot:bit
easy and fast to print

DotBot:bit Truck
allows the connection of other mechanical elements
stl file for DotBot:bit
DotBot-bit-dx.stl
DotBot-bit-sx.stl
DotBot-bit.stl
stl file for DotBot:bit Truck
DotBot-bit-T-dx.stl
DotBot-bit-T-pen.stl
DotBot-bit-T-sx.stl
DotBot-bit-T.stl
stl file for DotBot:bit - Lego version (Lego bricks compliant)
DotBot-bit-plate-lego-version.stl
DotBot-bit-ultrasound-lego-version.stl
DotBot-bit-dx-lego-version.stl
DotBot-bit-sx-lego-version.stl
stl file for the moto:bit (sparkfun) holder
moto_bit-holder-v01.stl
moto_bit-holder-v02.stl
Build Instructions:
The robot assembly is easy. More detailed instructions can be found on this link: http://www.maffucci.it
