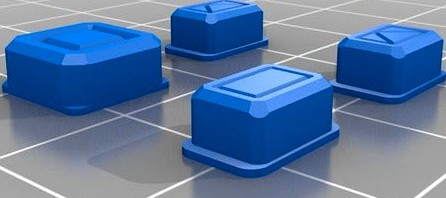

DNA 250c with Modular battery sled by RealmKnight
by Thingiverse
Last crawled date: 4 years, 7 months ago
My take on a DNA 250c 3 battery mod. Included is an 18650 battery sled with the 21700 sled coming soon. Designed in Fusion 360.
*Edit: 21700 sled model added, have not printed yet
Uploaded a V2 of the 18650 sled with a cutout for using the JST connector if desired
I utilized Keystone battery contacts (3 of each);https://www.mouser.com/ProductDetail/534-209https://www.mouser.com/ProductDetail/534-228
Magnets for the case;https://www.supramagnets.com/discs/202-disc-magnet-6mm-x-3mm-n35-0094922873316.html
510;http://www.varitube.com/VT-510-V2-Connector--Self-adjusting-Center-Pin_p_364.html
(I use the Stainless and Black smooth-top versions)
