***Added a Coin Counter Balance for larger phones. For an Iphone 6s+, with a Lifeproof Nuud case, 4 quarters wrapped in etape worked perfect. Recently used Osmo on vacation and it worked great. If anyone knows how to disable the optical stabilization that would be awesome!
Updated Version 2 of the arms. Removed gap when arms are collapsed. Changed profile to mimic the originals and to allow for clearance in flashlight mode. I cut the support tab off with strong scissors and did no additional cleanup, parts fit great.

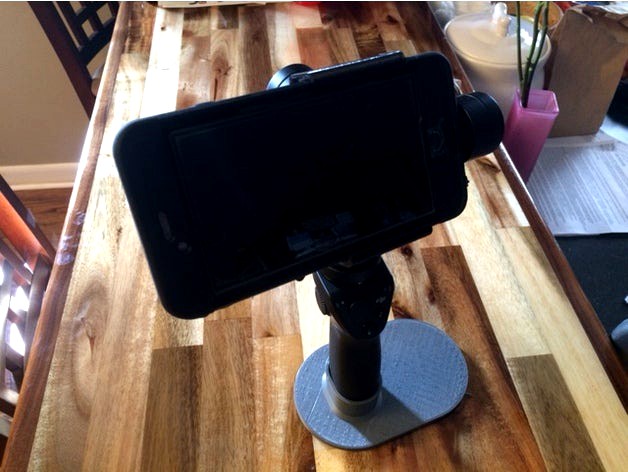

I had purchased and Osmo Mobile for my Iphone 6s+ with a Lifeproof case. Well, it didn't fit. I designed these arms to extend the width by 3/8" and hold the case. They fit perfectly and allowed for adjustment like they were made for it! However, the phone would not balance. I am working on a clip on weight to balance the phone with case. Use the arms for a better grip on a Lifeproof style case for an Iphone 6+ size device. Phone is held securely with no slipping. I would not use the arms on a phone without some kind of case to prevent scratching.
There is an upper and lower arm. Designed with support, ready to print. Score along dotted line and snap off support. I used an Exacto knife to clean up edges before using.
Silicone pad is held on with double sided tape and lifts of easily. There are 4 small screws holding on the cover plate. Swap arms out. To keep arms aligned install in fully collapsed position. Reinstall cover plate and screws. I set aside silicone pad and original arms in a small bag.
Updated Version 2 of the arms. Removed gap when arms are collapsed. Changed profile to mimic the originals and to allow for clearance in flashlight mode. I cut the support tab off with strong scissors and did no additional cleanup, parts fit great.
I had purchased and Osmo Mobile for my Iphone 6s+ with a Lifeproof case. Well, it didn't fit. I designed these arms to extend the width by 3/8" and hold the case. They fit perfectly and allowed for adjustment like they were made for it! However, the phone would not balance. I am working on a clip on weight to balance the phone with case. Use the arms for a better grip on a Lifeproof style case for an Iphone 6+ size device. Phone is held securely with no slipping. I would not use the arms on a phone without some kind of case to prevent scratching.
There is an upper and lower arm. Designed with support, ready to print. Score along dotted line and snap off support. I used an Exacto knife to clean up edges before using.
Silicone pad is held on with double sided tape and lifts of easily. There are 4 small screws holding on the cover plate. Swap arms out. To keep arms aligned install in fully collapsed position. Reinstall cover plate and screws. I set aside silicone pad and original arms in a small bag.
