DIY Linear Slide Example by largeformat3dprinter
by Thingiverse
Last crawled date: 4 years, 8 months ago

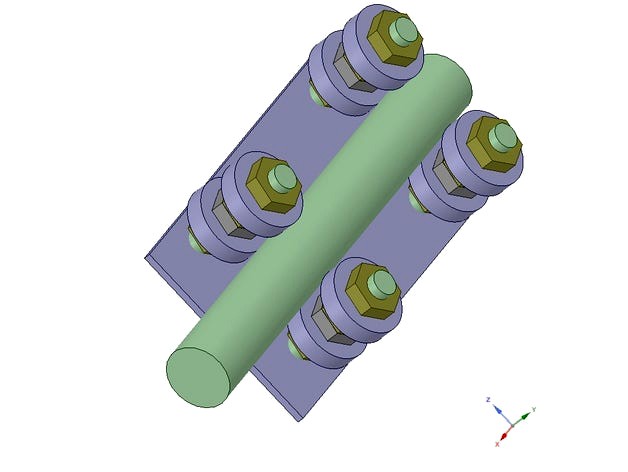

Example of a DIY linear slide using ordinary pipe and hardware store parts.
Included 3D PDF and DesignSpark Mechanical file.
Your machines motion will only be as accurate as your pipe and corner brackets. However for a DIY CNC Plasma or CNC router or super low budget 3D printer it is ideal.
The goal with this design is to use a minumum of imported China parts and source locally as much as possible.
Included 3D PDF and DesignSpark Mechanical file.
Your machines motion will only be as accurate as your pipe and corner brackets. However for a DIY CNC Plasma or CNC router or super low budget 3D printer it is ideal.
The goal with this design is to use a minumum of imported China parts and source locally as much as possible.
