DISPLAY STAND FRAME for Pimoroni's Raspberry Pi Official 7inch TouchScreen case by n602

Last crawled date: 4 years, 7 months ago

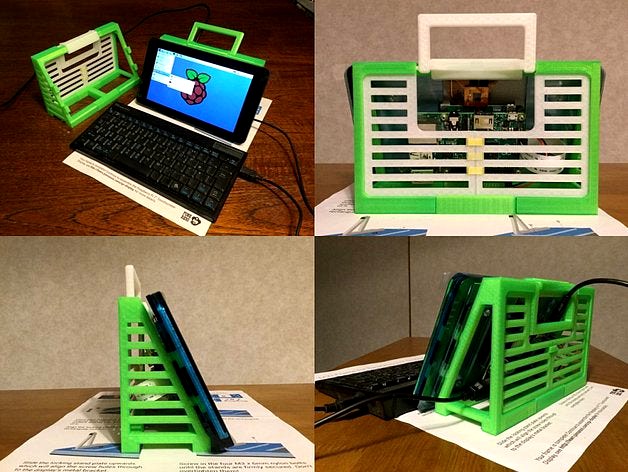

This display stand frame was designed for Raspberry Pi Official 7 inch TouchScreen with PIMORONI's acrylic resin frame.
It is substitutive part for PIMORONI's acrylic triangular cutouts in brief.
.
-The official Raspberry Pi touch displayhttps://www.raspberrypi.org/blog/the-eagerly-awaited-raspberry-pi-display/
-Raspberry Pi 7" Touchscreen Display with Standhttps://shop.pimoroni.com/collections/displays/products/raspberry-pi-7-touchscreen-display-with-frame
--- instruction for assembling.
Please print 8 kinds of STL files out and joint each other.
Some pictures and a cad data file will be for your reference.
.
---data files .
-cad data file for "AUTODESK 123D DESIGN"
DisplayStandFramePM049.123dx
-STL files for 3D Printing.
frm_center049.stl
frm_left049.stl
frm_right049.stl
hndl049.stl
rpnl_clps049.stl
rpnl_left049.stl
rpnl_right049.stl
slv049.stl
.
... attention.
Carrying handle was designed for temporary using only.
It's not for any heavy duty works.
