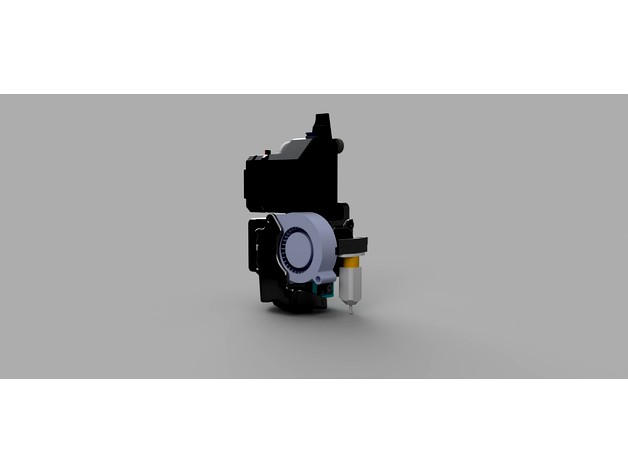

Direct mounting for Creality Ender3 v2
Based on the design : Creality Ender/ CR10 Hotend Mount and Part Cooling by Hangtight on Thingiverse: https://www.thingiverse.com/thing:4725293
The primary need was the need to redesign the pro
Mellow All Metal Titanium Heat Break NF Zone-T CR10 -PRO, which is a bit longer than the classic Heat Break. However, it is usable with the classic stock solution from Ender3 v2 just need to change the mounting for the BLT for the NF Zone-T Pro version is lowered by 5mm.
The mount for the dual drive and stepper is designed to minimize the space between the dual and the hotend.The stock solution is the same.
I recommend printing from ASA or ABS material , but PLA is also tried and tested however for a cannon print without cooling I recommend removing the duct.
What will be needed:
10 heat set M3 inserts to the mount plate.
9 screw M3 8mm
2 screw M3x18mm
1x M3x22mm screw,
1x M3 nut
2 M3 washers.
