Direct Ink PCB Plotter by Kyo
by Thingiverse
Last crawled date: 5 years, 1 month ago

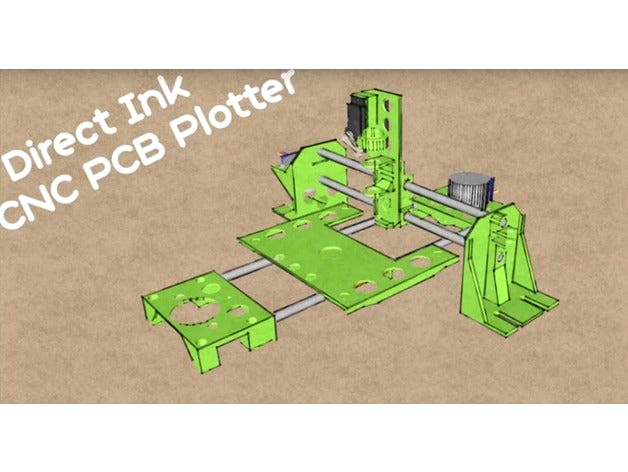

A while back I started to build Dirk Herrendoerfer's Direct Ink to PCB Plotter. To begin I remodeled the plotter in Sketchup to help me visualize the build. I keep getting request's for my sketchup file and as such I am happy to share~
Sketchup Model done by myself:
Design by Dirk Herrendoerfer:
Link to Dirk's github with original stl files.. https://github.com/dherrendoerfer/uCNC_controller
