Direct Drive Extruder Servo Mount Improved by AndrewBCN
by Thingiverse
Last crawled date: 4 years ago

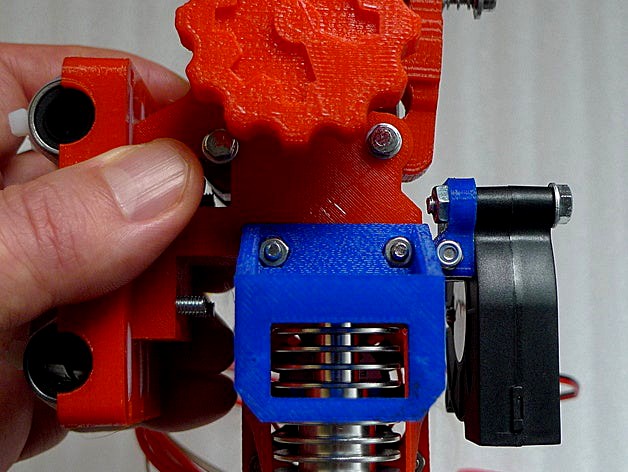

This is a slightly improved version of Gumpwa Luong's Servo Mount (thing # 559745) for Marty Rice's awesome Direct Drive Extruder (thing # 501755). The servo is used to implement Auto Bed Leveling.
All dimensions are the same as Gumpwa's original part. I added guide holes for the servo's small self-threading screws (usually included with the servo itself), nut traps for the two M3 nuts that hold the mount to the extruder body, and a couple of reinforcements. I also fixed a possible printing issue with an unsupported part of the original design.
I suggest using my "improved Z-probe limit switch holder for Auto Bed Leveling" (thing #573181) together with this servo mount, customizing its length for your specific hotend setup.
I wrote the code from scratch and the OpenSCAD source is included so the part can be further remixed.
All dimensions are the same as Gumpwa's original part. I added guide holes for the servo's small self-threading screws (usually included with the servo itself), nut traps for the two M3 nuts that hold the mount to the extruder body, and a couple of reinforcements. I also fixed a possible printing issue with an unsupported part of the original design.
I suggest using my "improved Z-probe limit switch holder for Auto Bed Leveling" (thing #573181) together with this servo mount, customizing its length for your specific hotend setup.
I wrote the code from scratch and the OpenSCAD source is included so the part can be further remixed.
