Dewalt DW735 planer-shopvac vacuum adapter, angled by adrianvm
by Thingiverse
Last crawled date: 4 years ago

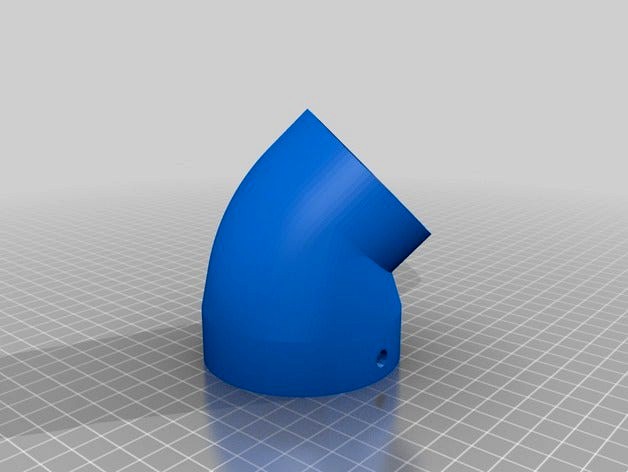

This adapter snaps onto the output dust port on the DW 735 planer and connects to a vacuum hose with the output angled up and sideways so that the hose doesn't drape down over the outfeeding workpiece.
The OpenSCAD file is parameterized so that you can easily change diameter of the ports or change the angles of the output. I was able to print the model as shown with a raft but without using supports in PLA on a TAZ6.
The OpenSCAD file is parameterized so that you can easily change diameter of the ports or change the angles of the output. I was able to print the model as shown with a raft but without using supports in PLA on a TAZ6.
