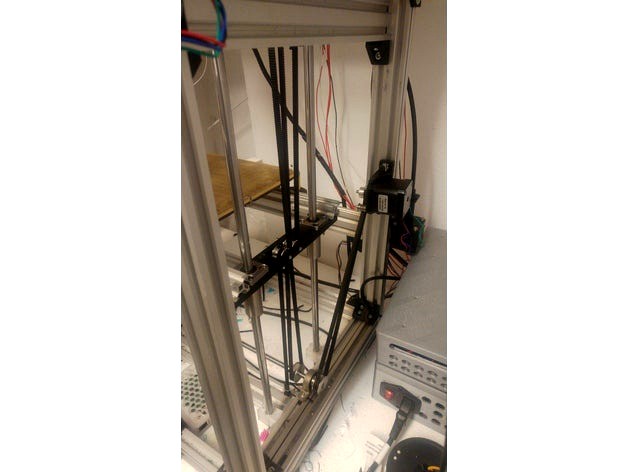

D-bot Rock solid bed v2 - belt driven Z by MrBlom
by Thingiverse
Last crawled date: 4 years ago
This is my latest latest latest Z carriag
easy to print and install
you need
? x GT2 x (coming soon)
2 x 2020 x (coming soon)
2 x 2040 x (coming soon)
2 or 4 KP08 Pillow Block
4 x LMK10LUU
4 x smoothrods 10mm
1 x 500mm rod(i use my old leadscreew)
3 x 40t pully
1 x 20t pully
i use this set up on both sides (but only one motor)
maybe it can be used on the side ?
more pics and better description coming soon
!WARNING!
the bed can drop on no power it might damage the electronics (some say this)
i use a Duet and have no problem i alos use a counter weight
ps. i dont run a normal D-bot
i have Hiwin sliders fox X and Y and you may have to do some changes to make things work
