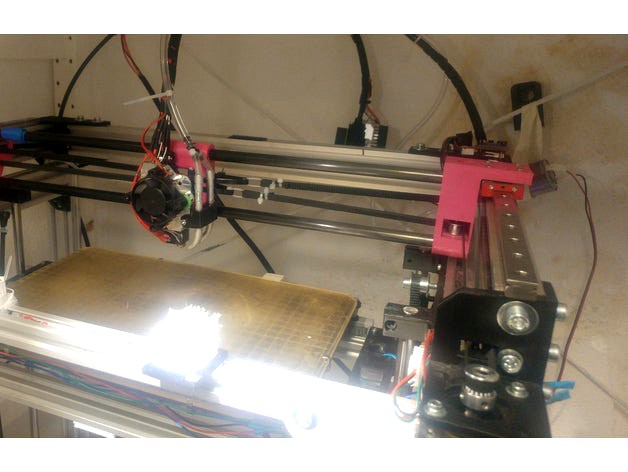

This is carbon + rails for the D-bot frame
using mgn12 on the Y
and carbon rods for the X
Thanks HEVO for the carbon ide :)
This is a early test version try it on your own risk
a v2 will most likely come soon
this is not a final version and for example the alignment is not 100% for the belts on the carriage
i use
2 mgn 12 rails
2 10mm carbon rods
4 * pullys(ID 3)
this uses a Areo heat sink and a Nimble
can do a normal bowden version later is some one want it
i use sensorless homing so no endstops is in the design
you need to add this your self if you use normal endstops
hmm maybe some more.... will update the list more exact soon
Thanks to Papsnoek for the PTFE bushinghttps://www.thingiverse.com/thing:2419990
PLEASE
don't write comments saying carbon will not work bla bla
this is not new and untested
Have fun!
