Customised Component Tray
by Thingiverse
Last crawled date: 5 years, 10 months ago
Printed on my DaVinci 1.0 (Repertier Firmware) with Octoprint

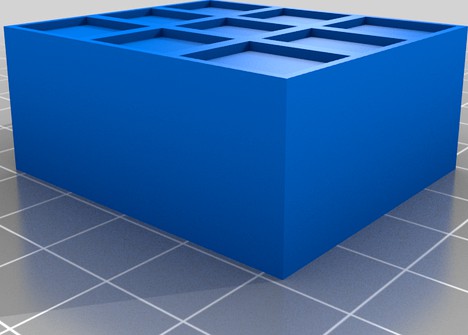

A customized component tray for Pick and Place machine
I use a TVM802 PnP for low volume runs and small batch assembly and rapid prototyping
for product development business Inventech (http://www.inventech.co.za)
The TVM802 has limited support for component trays and strip feeders so I have
printed some trays and strip feeds that I key into locations on the build table
This is a customized component tray for a SPBTLE-1S Ble modulehttps://www.st.com/en/wireless-transceivers-mcus-and-modules/spbtle-1s.html
It can be adapted to any type of component that you need keyed into a specific location on the build table.
A customized component tray for Pick and Place machine
I use a TVM802 PnP for low volume runs and small batch assembly and rapid prototyping
for product development business Inventech (http://www.inventech.co.za)
The TVM802 has limited support for component trays and strip feeders so I have
printed some trays and strip feeds that I key into locations on the build table
This is a customized component tray for a SPBTLE-1S Ble modulehttps://www.st.com/en/wireless-transceivers-mcus-and-modules/spbtle-1s.html
It can be adapted to any type of component that you need keyed into a specific location on the build table.
