Cup Holder for Saab OG9-3 by TommysDesign
by Thingiverse
Last crawled date: 4 years, 4 months ago

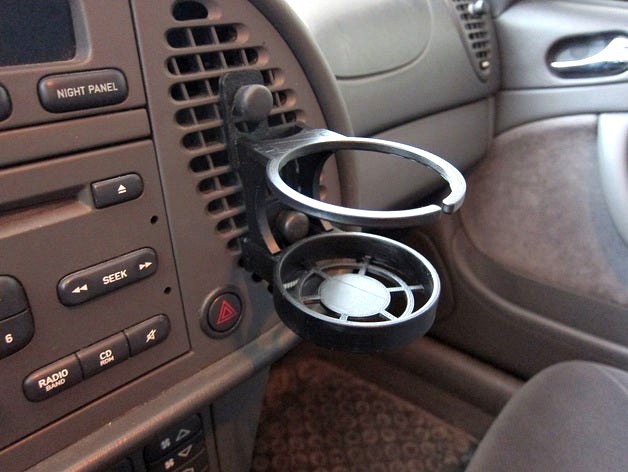

Cup holder for Saab 9-3 1998-2002 (& SAAB 900 1994-1998)
Cup holder is attached to the knobs of middle ventilation grille in dashboard.
Instructions:
1. Print (ABS) the following parts:
Top x 1
Bottom x 1
Side x 2
Back x 1 (Mirror in RHD cars?)
2. Push & glue parts together (with acetone when ABS) in the following order:
side plates to bottom part
back plate to side plates (notice the direction!)
top plate to side plates
Mounting:
adjust the knobs in ventilation grille to center position both horizontally & vertically
push the cup holder towards the dashboard (ventilation knobs through the holes in cup holder)
slide the cup holder gently downwards until it 'locks' into its place
