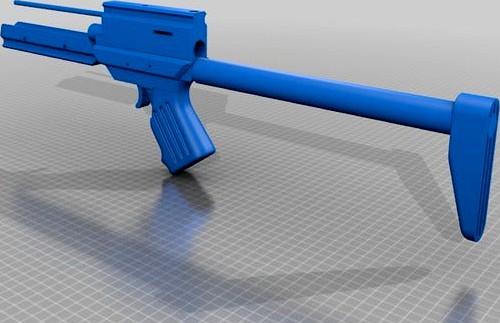

Crosman 1322/1377 Carbine Air Crossbow by mussy
by Thingiverse
Last crawled date: 4 years ago
I have spent the last week perfecting this Air Powered PCP Crossbow, This is the Kids version that is low powered for target shooting (10 meter range), It uses the .22 or .177 Crosman pump receiver that is used on their old 1377/1322 air pistols from the 1980s , they are very cheap, robust and extremely reliable a great platform that can be used for lots projects, it shoots standard 8mm carbon arrows that have been cut down to 195mm. The screw set and power bushing are optional because I made my own bushing and I tapped all 3 mounting holes for metric screws. The lower uses standard AR15 pistol grip. As always more details will follow in the Make.
Adult CO2 version will be released this weekend ;)
Items Required:
Crosman pump receiver: https://www.ebay.co.uk/itm/Crosman-1377-1322-Main-Tube-Pump-Arm-Valve-Barrel-Band-Forearm-Hammer-Internals/331534372764?hash=item4d30fd0f9c:g:ZHgAAOSw14xWIAJW
Optional Screw Set : https://www.ebay.co.uk/itm/Crosman-2240-1377-1322-Brass-Screw-Upgrade-Kit-Set-Partial-Rebolt-2250-2260-2289/231992482997?hash=item3603d45cb5:m:mL8KZGCUR3E_8UDmPyCCN5w
Optional Power Bushing : https://www.ebay.co.uk/itm/25-Wider-Max-Flow-Transfer-Port-Bushing-Crosman-2240-2250-2260-1322-1377-P1322/231489774362?hash=item35e5dda31a:g:pocAAOSwEeFU7V2i
Titanium Barrel: https://www.ebay.co.uk/itm/1pc-Titanium-Grade-2-Gr-2-Tube-Pipe-OD-6mm-x-4mm-ID-Wall-1mm-Length-20cm-S9T4/122856848877?epid=28010877069&hash=item1c9ad6bded:g:OuoAAOSw7z1aL7A-
Arrows: https://www.ebay.co.uk/itm/NEW-Fibreglass-CARBON-GRADE-Archery-Arrows-Screw-Tip-On-off-broadhead-compatible/121148085256?hash=item1c34fd1408:m:mRVadcMklljAhezOZ183F6A
Arrow Inserts: https://www.ebay.co.uk/itm/12PCS-Aluminum-Arrow-6-2mm-Inserts-Base-for-Broadhead-Archery-Arrows-Practice-WC/332362610693?epid=2213695533&hash=item4d625af805:g:mCkAAOSwiYlaOOY0
!Don't forget to check out my other Cool designs and Follow my weekly KooKoo uploads, Enjoy ;)
