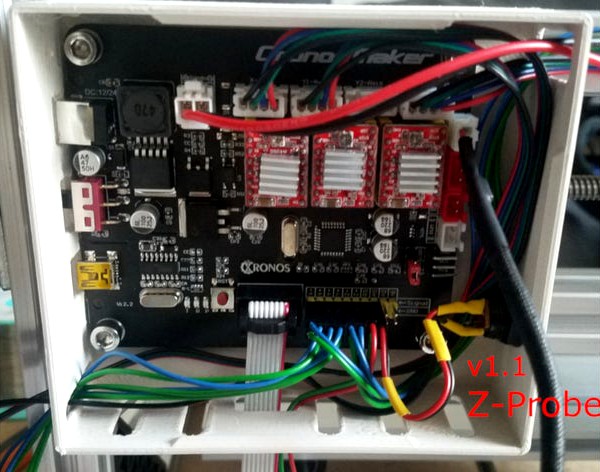

This is a box for the Cronos Maker 2.2 Box
I don't like how the board has to be fixed, so I decided to build my own. The main idea is to keep all cables inside and cover it from dust.
The box and cover close with snap fit, so screws required. There are two version of the cover. I like the fan outside so the box uses less material.
Fan no notch: the space for a 60x60mm fan
Fan notch: in addition to the fan space, there is notch to bring the cable inside from the outside. It does depend on the exact fan you get, but it is ok for me.
The walls are 18mm and the base just 1.2mm. You should be able to print it with a 0.4mm nozzle, but I use 0.6mm nozzle and 3 walls for this kind of boxes.
Udpates
V1.1 Added aperture for a 12.5mm dc jack (2.1 mm) to connect the Z probe.
V1.0 Initial version.
