Creality Ender 3 - Silence & Quality Mod by petrzmax
by Thingiverse
Last crawled date: 4 years, 1 month ago
If You enjoyed this guide and You want to say "Thank You" please consider supporting me by sending a tip on thingiverse or my PayPal here.
Photos legend:
Green - stock cooling and drivers.

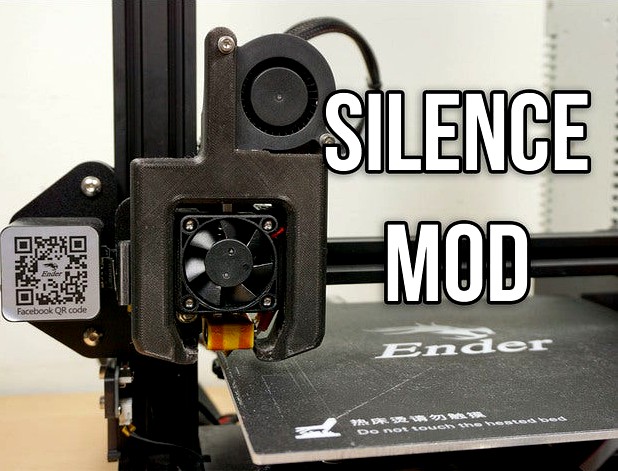

Grey - new cooling and TMC2208.
For this mod You will need:
Motherboard MKS Gen L V1.0: http://bit.ly/2MiIcAz
TMC2208 (It's set of 5 drivers. Ender 3 requires only 4): http://bit.ly/TMC2208
or TMC2208 singly, not in set: http://bit.ly/2MGFmCa
11.2019 - Today You should choose TMC2209: http://bit.ly/TMC-2209
USB extension cord: http://bit.ly/2nyZk74
Micro SD card reader: http://bit.ly/2Ozbmc0
5015 24V fan: http://bit.ly/2KUhNUN
Of course You will need to print parts in this Thing ;) Also I recommend You to print Petsfang Duct:
http://bit.ly/2P93L4X
It's much better than the stock cooling and will greatly improve Your print quality.
Check my I3 Mega ULTIMATE upgrade guide! There is a lot of knowledge which may help You get the best 3D printing results. You will find it here: http://bit.ly/2OVbu5Z
If You don't know how to calibrate Your Flowrate check this guide: http://bit.ly/2V2uXEF
If You want to make Your printer super silent You will need to swap original fans.
You can use for example these:
http://bit.ly/2nHkAaw
If the specification is right, they should be silent. There is no 24V silent fans from famous brands like Noctua but as the motherboard fan and prinhead fan should be powered directly from the psu You can connect two 12V fans in series and it should work just fine.
You can find marlin for this setup in the download section. If You want to use Linear Advance with TMC2208 You need to set MINIMUM_STEPPER_PULSE for 1 in Configuration_adv.h.
LCD plug needs to be connected upside down. Yeah, that's weird but trust me. There may be a need to cut latch off.
Card reader needs to be glued to new box. I have used epoxy glue and it's holding well.
Sd card reader needs to be connected via AUX-3 pins. Pin CS should be connected to pin 53, the rest is obvious. If it's not I do not recommend this mod to You. Make better cooling duct and You will be happy with the results.
You can check out video about this mod here: https://www.youtube.com/watch?v=tU-JaLxV4nc
It's in Polish language, but there are English subtitles! (Thanks to Ipepe for making them!)
