Creality CR10 XT60 adaptor by Capney
by Thingiverse
Last crawled date: 4 years, 5 months ago

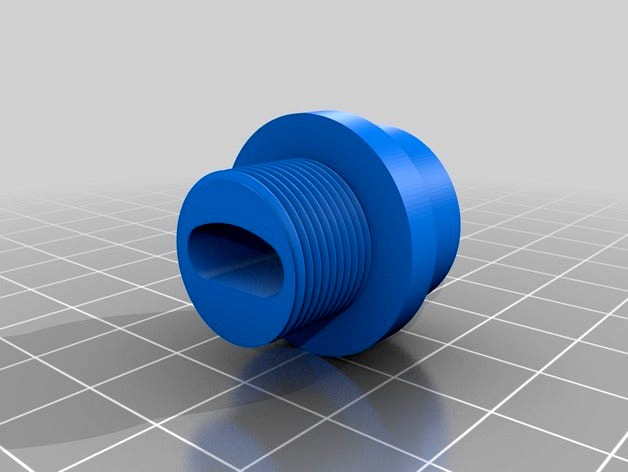

Due to bad original connector for heat bed, I put a XT60 connector in the back.
It uses the original nut, supposedly M16x1 mm, but mine was smaller? So this is 15,7x1 mm
So this might differ from your printer. (It's only plastic so it will screw on anyway, but it's nice when threads mesh nicely :D )
It is press fit, with pliers or a vice, it will click into the retainers and never let go.
I printed on 0.1 due to the threads and the small retainer for the XT60.
But this might work fine with lower resolution eg. 0.2
