Crash leveler for Dual Z-screw 3D Printers (Ender 3, Mega Zero etc) by djos_1475
by Thingiverse
Last crawled date: 4 years, 5 months ago
This is designed to fit all 3D Printers with Dual Z-screws that use 40x20mm Extruded frames. eg Anycubic Mega Zero, Creality Ender 3 etc
This will allow you to level your printer using the same method as Prusa printers, just drive the X gantry up to the top of the frame, and gently "crash" into the levelers to level your X gantry.

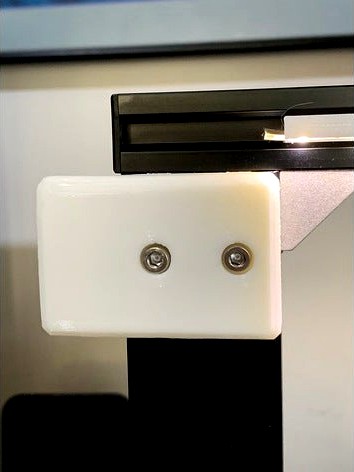

It's designed to be installed using 2x M4 Cap-head bolts and 2x M4 T-nuts per side.
I recommend printing these with 6 layer top / bottom and walls with 25% Cubic infill for maximum strength.
I've written a simple Gcode script to level your X-gantry on an Anycubic Mega Zero v1.0 - due to having a heated bed, I hit the crash revelers at ~215 mm Z height so have set my leveling command to 220mm max Z height. You might need a taller Z height depending on your printer config.
To use it, just put it on your SD card and "print it" - it'll tell you what it's doing on the screen via M117 commands.
This script assumes you have ABL, if you don't then this script could make a real mess so please be careful.
You shouldn't need to run this very often, eg once a week tops, or before big long prints to make sure everything is spot on.
This will allow you to level your printer using the same method as Prusa printers, just drive the X gantry up to the top of the frame, and gently "crash" into the levelers to level your X gantry.
It's designed to be installed using 2x M4 Cap-head bolts and 2x M4 T-nuts per side.
I recommend printing these with 6 layer top / bottom and walls with 25% Cubic infill for maximum strength.
I've written a simple Gcode script to level your X-gantry on an Anycubic Mega Zero v1.0 - due to having a heated bed, I hit the crash revelers at ~215 mm Z height so have set my leveling command to 220mm max Z height. You might need a taller Z height depending on your printer config.
To use it, just put it on your SD card and "print it" - it'll tell you what it's doing on the screen via M117 commands.
This script assumes you have ABL, if you don't then this script could make a real mess so please be careful.
You shouldn't need to run this very often, eg once a week tops, or before big long prints to make sure everything is spot on.
