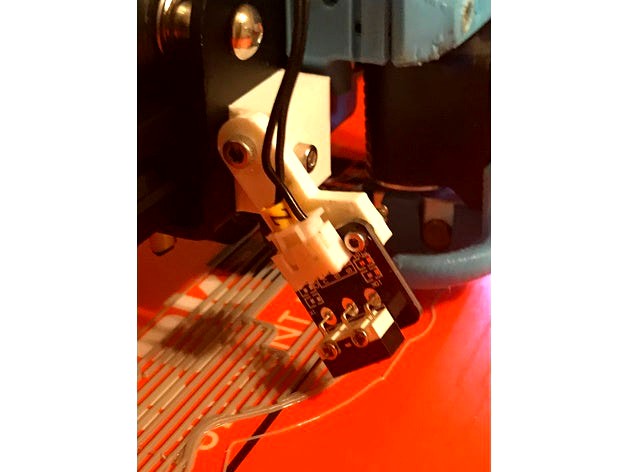

CR-10S ABL Sensor Mount by wonmurk

Last crawled date: 4 years, 7 months ago

This is a simple ABL mount using the existing Z stop switch. The pivot point uses an M3 X 20 with a self locking nut for adjusting the tension. The lever is lowered for the ABL process and after the last position is done I move it out of the way with just the tip of my finger. You will have to update your firmware for the probe to nozzle offset and set the points for your grid pattern, and enable bed leveling in your slicer software. I've added a video on Facebook in the CR-10 user's group.
