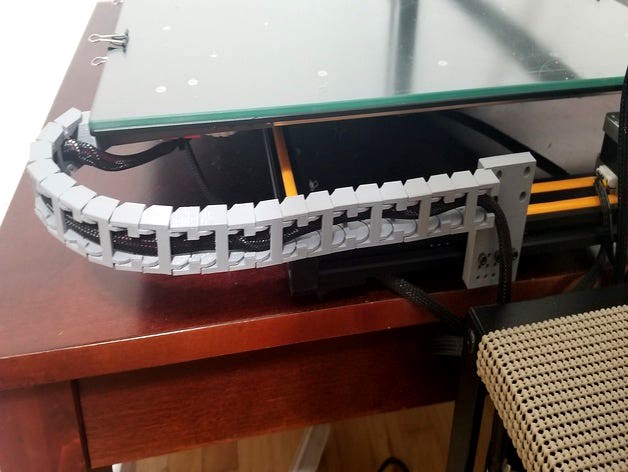

My first 3D model load! I used the Y-axis drag-cable made by stevenfayers, but it didn't seem to attach well for the CR-10 S5 Creality model. I wasn't a fan that part of the chain had to be attached to the bed leveling knobs either (every time I would have to remove it to level the bed!).
So, I loaded two additional options for attaching the Y axis drag-cable. This build requires some bolts and nuts (T-hammer and M3) for attachment. "Drag Cable - Bed Connector V07" attaches to the bed by using a T-hammer nut to the metal frame/track underneath (in one of the photos). "Drag Cable - Bracing Mount to Ground V01" attaches to the frame. I tried increasing options on attachment options so that if your version is a little different than mine it may still work for you (such as need the chain connector to be higher, there are more holes to move it up).
I was also inspired by the design made by Omega23jp:https://www.thingiverse.com/thing:3252960
These M3 T-Hammer Prints may help in assembling this. I used the design by DaVinci2000 below. I found the T-Hammers be a tad big, but they ended up working:https://www.thingiverse.com/thing:3050607
I hope these help you guys out. It may need some modifying, but here is a head start! You may need to "generate support" for the "Drag Cable - Bracing Mount to Ground V01".
