CR-10 Rasberry pi Base by Ortovox
by Thingiverse
Last crawled date: 4 years, 11 months ago

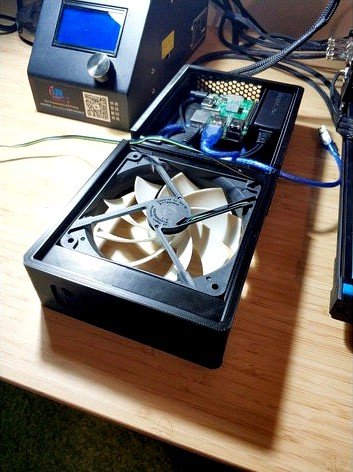

Remix of the nice CR-10 120mm fan base to be able to integrate my Raspberry Pi with a POE adapter. Dual 120mm fans are not needed for me and one 120mm fan is enough to cool and ventilate everything in my control box.
The Rasberry Pi 3B is running Octoprint and Klipper while powered and connected to internet using a POE adapter splitter with Micro usb connector. Temps at idle are around 49c and when printing around 41c since then the fan in the front fan base is running and cooling everything.
Note! I have tried the POE adapter on my Pi 3B+ but then I get to low power warning but on the 3B it's been running without any problem for 2 years.
POE adapter I usedhttps://www.ebay.com/itm/1x-Popular-PoE-Splitter-Power-Over-Ethernet-48V-to-5V-2-4A-Micro-USB-Adapter-12W/223926946716?hash=item3423160b9c:g:50kAAOSwXY5ZWeIT
Finish on the bent surface underneath is not perfect since importing original STL to Sketchup had some issues. But it shoudl be error free and print ok.
