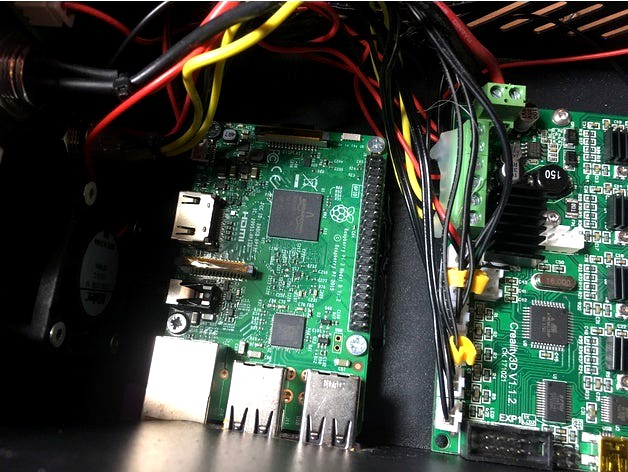

CR-10 Pi integration alternate Relay by Zafferg
by Thingiverse
Last crawled date: 4 years, 7 months ago
Using the excellent original by Michaeldeberry
I added a mount for the grove relay board referenced on this guide:https://github.com/foosel/OctoPrint/wiki/Controlling-a-relay-board-from-your-RPi
Bought mine here:http://cpc.farnell.com/seeed-studio/103020005/grove-relay-no-5v/dp/MK00330?st=grove%20relay
Was expecting to have to play with the relay mount a little and was going to finish it a little better but the first one I printed was spot on and I'll not see it so meh
The extended IO shield is to cover up my hack job on the side of the CR10 control box - not fixed it in place yet but will add pics when I do.
