CR-10 Dial Indicator Holder for a dial indicator with thicker back by ekstrand

Last crawled date: 4 years, 7 months ago

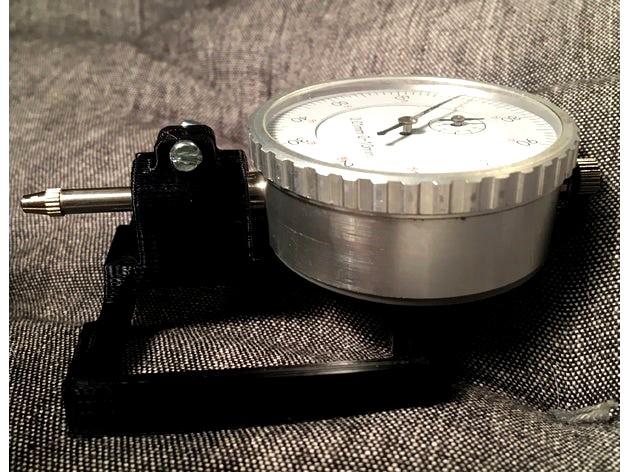

My dial indicator was to thick for the one remixed by Laurmann.
I needed about 1mm of clearance to make my dial indicator fit.
I have also modified Casters G-code (http://myfordboy.blogspot.se/p/creality-cr-10.html) for running the calibration (designed for my CR-10 mini bed size 300x220) now waiting for user input instead of sleeping a fixed amount of time.
HOT ALIGN G-CODE
M190 S60 ;heat bed to 60C
M104 S195 ;start heating extruder to 195C
M109 S195 ;wait until extruder reaches 195C
G21 ;metric values
M82 ;set extruder to absolute mode
M107 ;set fan off
G91
G1 Z30.0 F9000 ;//clear z
G90 ;absolute positioning
G28 X0 Y0 ;move X/Y to min endstops
G0 F3500 X10.000 Y10.00 ;//move in for paper test
MO Place a piece of paper
M1 Place a piece of paper
G28 Z0 ;//move in for paper test
MO Set nozzle height
M1 Set nozzle height
G1 Z25.0 F9000 ;move bed to clear indicator
G92 E0 ;zero the extruded length
G1 F9000
M107 ;set fan off
;Move DTI to each corner in turn
G0 F3500 X10.000 Y60.00 Z10.000
M117 ;zero DTI
;G4 P10000 ;wait 10 seconds to set DTI to zero
MO Zero indicator
M1 Zero indicator
G1 X290.000 Y220.000
MO Click to continue
M1 Click to continue
G1 X290.000 Y60.000
MO Click to continue
M1 Click to continue
G1 X10.000 Y220.000
MO Click to continue
M1 Click to continue
G1 X10.000 Y60.000 ;return DTI to start position
MO Click to continue
M1 Click to continue
M107 ;set fan off
G0 F9000 Z25
;End GCode
M104 S0 ; set extruder temperature off
M140 S0 ; set bed temperature off
M84 ;disable steppers
COLD ALIGN G-CODE
G21 ;metric values
M82 ;set extruder to absolute mode
M107 ;set fan off
G91
G1 Z30.0 F9000 ;//clear z
G90 ;absolute positioning
G28 X0 Y0 ;move X/Y to min endstops
G0 F3500 X10.000 Y10.00 ;//move in for paper test
MO Place a piece of paper
M1 Place a piece of paper
G28 Z0 ;//move in for paper test
MO Set nozzle height
M1 Set nozzle height
G1 Z30.0 F9000 ;move bed to clear indicator
G92 E0 ;zero the extruded length
G1 F5000
;Move DTI to each corner in turn
G0 F3500 X10.000 Y60.00 Z10.000
M117 ;zero DTI
MO Zero indicator
M1 Zero indicator
G1 X290.000 Y220.000
MO Click to continue
M1 Click to continue
G1 X290.000 Y60.000
MO Click to continue
M1 Click to continue
G1 X10.000 Y220.000
MO Click to continue
M1 Click to continue
G1 X10.000 Y60.000 ;return DTI to start position
MO Click to continue
M1 Click to continue
G0 F9000 Z25
;End GCode
M104 S0 ; set extruder temperature off
M140 S0 ; set bed temperature off
M84 ;disable steppers
