Corner Bracket

Corner Bracket

by Thingiverse

Get from Thingiverse

Last crawled date: 5 years, 1 month ago

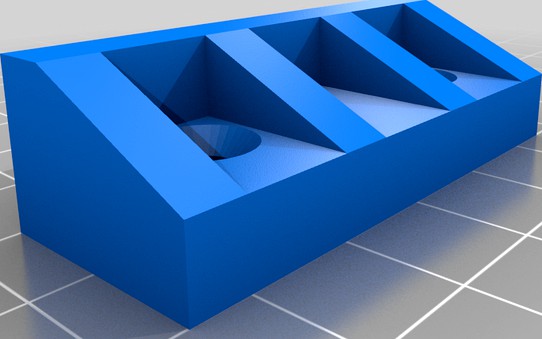

A corner bracket for holding the top plate of a closet which hold the weight of the top plate and the rail of the sliding doors (almost 50-60kg)
Mounted on 15th march, 2020... Let's see how it handles it.
Dimensions:
Back Plate: 50x20x7 mm
Top Plate: 50x7x5 mm
Holes: 5mm and 30 mm distance

Tags

corner bracket
