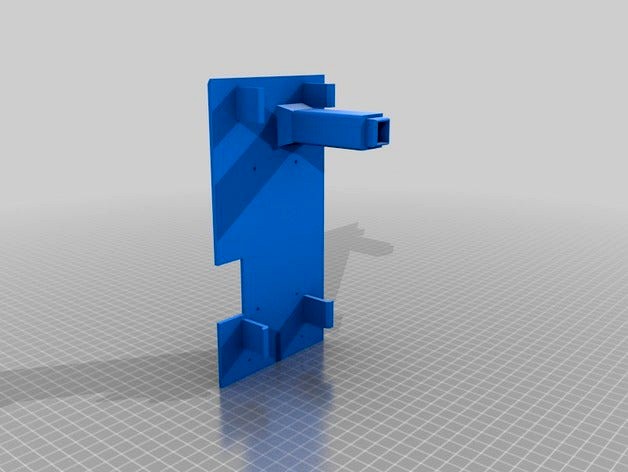

Control Panel and Cable Chain rig for RB1 by Frostbite
by Thingiverse
Last crawled date: 4 years, 7 months ago
This will work on a RB1 Regular. However, as I was still learning Fusion 360 at the time, some parts came out a little off and once I got them installed I saw no reason to redesign them to perfection. If it works, Don't fix it.
The MKs 1.4 Main Board is mounted in the control panel while the power supplies are external and mounted in the equipment rack The Beast sits on.
It supports mounting a cooling fan on either end of the control panel with a remote SD card slot and LCD panel in the front.
This was designed to work on Peter Stoneham's Single Extruder mount with a one off perfboard X axis PCB, so you will need to either fabricate your own board, or modify the X Axis Terminus to fit your board.
